4" Rotary Gas Meter | 14M-CTR | 14,000 MBH

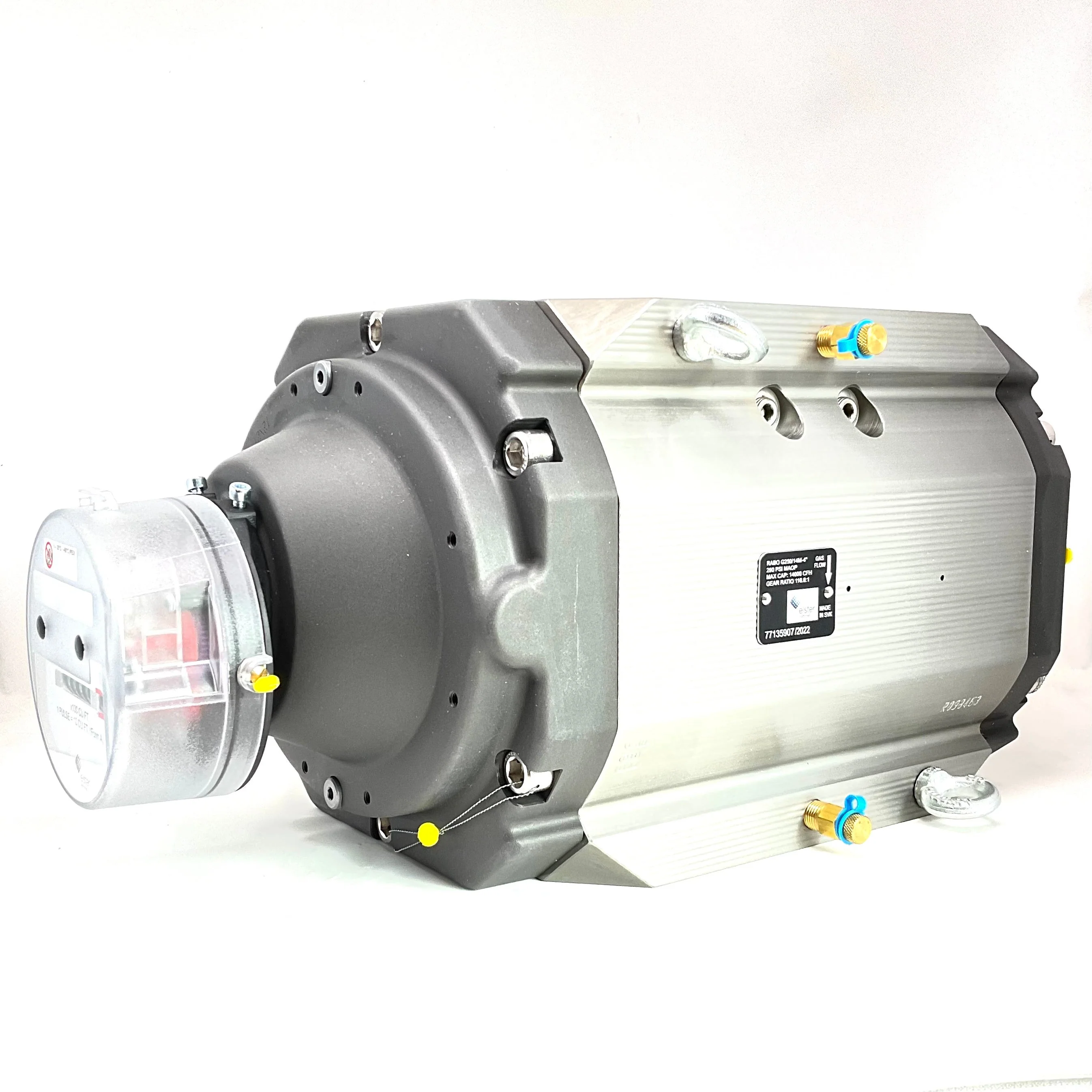

The Honeywell American Meter RABO rotary gas meter is unparalleled in cost, performance and maintainability. With its great rangeability, the RABO can handle both low and high flow applications. All models are available with an optional pulse output interface as well as an electronic volume corrector (EVC) for pressure and temperature compensation.
Specs:
- Size: 4" ANSI CL150 Flanged Connection
- Max Flow: 14,000 CFH (14000 MBH @ 1/4 PSIG)
- Max. Pressure: 290 PSIG
- Temperature Range: -40F to 140F
- Media: Dry Natural Gas, Noncorrosive Industrial Gases
Documentation:
The Honeywell American Meter RABO rotary gas meter is unparalleled in cost, performance and maintainability. With its great rangeability, the RABO can handle both low and high flow applications. All models are available with an optional pulse output interface as well as an electronic volume corrector (EVC) for pressure and temperature compensation.
Specs:
- Size: 4" ANSI CL150 Flanged Connection
- Max Flow: 14,000 CFH (14000 MBH @ 1/4 PSIG)
- Max. Pressure: 290 PSIG
- Temperature Range: -40F to 140F
- Media: Dry Natural Gas, Noncorrosive Industrial Gases
Documentation:
Description
The Honeywell American Meter RABO rotary gas meter is unparalleled in cost, performance and maintainability. With its great rangeability, the RABO can handle both low and high flow applications. All models are available with an optional pulse output interface as well as an electronic volume corrector (EVC) for pressure and temperature compensation.
Specs:
- Size: 4" ANSI CL150 Flanged Connection
- Max Flow: 14,000 CFH (14000 MBH @ 1/4 PSIG)
- Max. Pressure: 290 PSIG
- Temperature Range: -40F to 140F
- Media: Dry Natural Gas, Noncorrosive Industrial Gases
